With two capacity models, one is for 1 - 500g filling weight, another is for 10 - 5000g filling weight.

Stainless steel structure.

PLC control system accessed through an easy-to-use touch screw with a weight module controller.

Up to 10 sets of operating parameters can be stored.

Servo motor drive auger with up to 99% filling precision.

Include a handwheel of adjustable filling nozzle height.

No bottle no fill.

A conveyor is included.

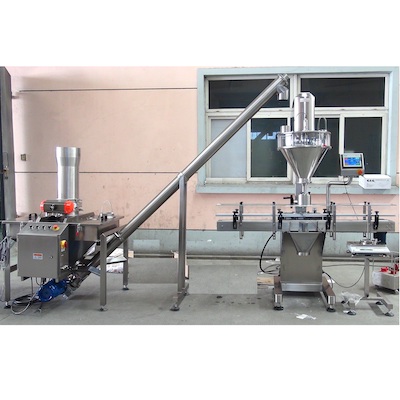

Auger Powder Feeder is optional.

For the semi-automatic model, please click here PF-150S / 160S Semi-auto Powder Filler.

For automatic rotary version powder filler, please click here PF-100A Rotary Powder Filler.

For fast speed linear powder filler, two filling heads are optional, please click here PF-220A Two Heads Linear Powder Filler.

Filling weight:      1 - 500g or 10 - 5000g.

Filling accuracy:   ≤±1%

Container size:    φ20-100mm, H 15-150mm

                            or

                            φ30-160mm , H50-260mm

Hopper:               25L or 50L.

Compressed air:  0.4 - 0.6Mpa, 0.05m3/min

Running speed:   15 - 40 containers per minute.

Voltage:               AC208-415V 3phase 50/60Hz.

Power:                 1.2kw or 1.6kw.

Dimension:           L1500 * W760 * H1850mm

                             or

                             L2000 * W970 * H 2030mm.

Weight:                 160kg or 300kg.
