Features

It's for labelling plastic tubes or compound tubes, as well as metal tubes.

Automatic tube positioning and labelling.

No tube no labelling.

Easy to operate and adjust.

Stainless-steel construction.

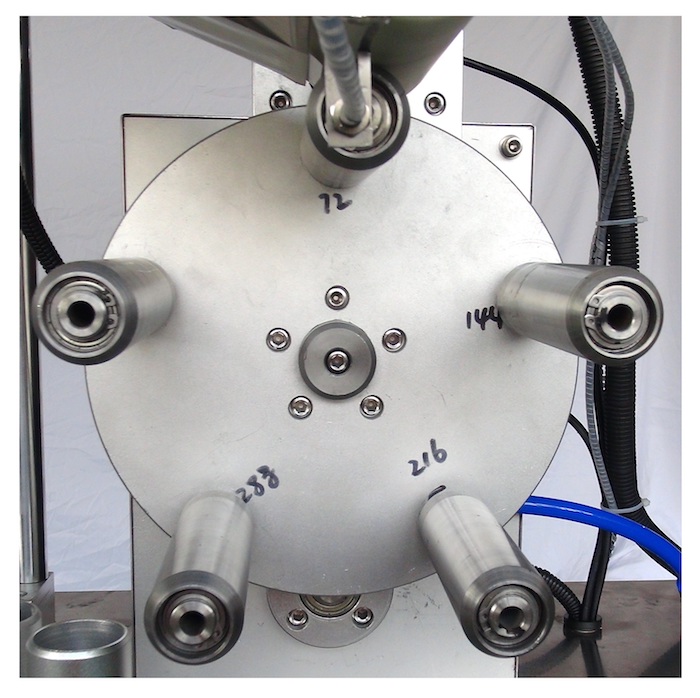

Works with different tube sizes by replacing the tube holders.

The automatic version is available, please click here TLB-100A Automatic Tube Labeller

Tube diameter:              20 - 50mm.

Tube length:                  Max. 240mm.

Label width:                   Max. 200mm.

Labelling precision:        99%.

Running speed:              Up to 50 tubes per minute.

Compressed air:             0.4 - 0.6Mpa.

Voltage:                          AC110 - 240V 1phase 50/60Hz.

Power:                            350W.

Dimensions:                   L950*W750*H1600mm.

Weight:                           150kg.
